Dual boot fix: Installing Windows XP over preinstalled Windows Vista or Windows 7 system

Windows no longer starts after you install an earlier version of the Windows operating system in a dual-boot configuration - problem fixed.
So you got your shiny new pre-installed Windows 7 computer over the holidays, but you want to have trusty XP standing by in a dual boot setup. Today we’ll walk through creating a new partition in Windows 7 then installing XP on it.

In this process we are going to shrink some free space on the Windows 7 hard drive to allocate toward a new partition. Make sure to take a moment and decide how much space to use for the XP partition. Make sure you have enough space on your hard drive for files you’ll be adding to each.

The first thing we need to do is create a new partition on the Windows 7 machine. Luckily we can do it without any 3rd party software. To begin, click on Start and type either partition ordisk management into the search box and at the top of the menu click on Create and format hard disk partitions.
sshot-2010-01-06-[20-36-31]
The Disk Management window opens, and from here we need to free up space on the (C:) drive Windows 7 is installed on. Right-click on the drive and select Shrink Volume.
2dual
A window pops up showing the drive is being queried for available space.
3dual
Now enter the amount of space you want to shrink the volume. You’re shown the total size of the disk and the amount of size that is available to shrink. In this example we’re freeing up 40GB of space.
4dual
After the process completes you’ll see the new Unallocated space. Right-click that and selectNew Simple Volume.
5dual
The New Simple Volume Wizard launches which is a straight forward process. When you get to the Format Partition section, NTFS is selected by default as the file system and you can leave that as is. You might want to rename the Volume label something else like “XP Partition” so it’s easier to identify when installing XP. Also you’ll probably want to make sure to check Perform a Quick Format.
6dual
After the format is complete you will see the new volume as a healthy partition listed.
7dual
Now when you go into My Computer you’ll see the the new disk and notice that space has been taken away from the (C:) drive Windows 7 is installed on.
8dual
Install XP on the New Partition
Now that you know how to create a new partition on your Windows 7 machine, it’s time to install XP on it. Here we’re installing XP Professional on the new partition. Boot from the XP installation disk and start the install process.
10dual
When it comes to choosing a partition, make sure you select the one you created using the steps above. In this example we made a 10GB partition for the XP install.
11dual

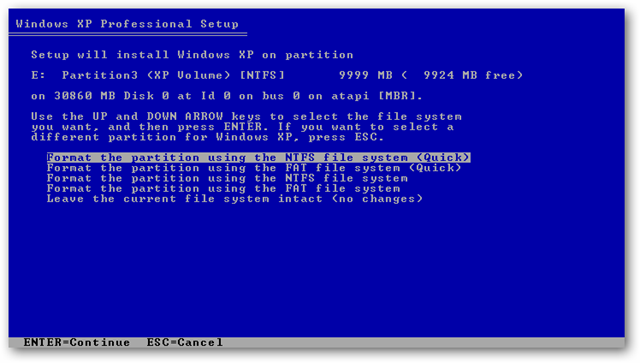

If the partition you created was already formatted as NTFS you can leave it, or you can choose the FAT file system if you want.
12dual
Basically you continue through as if you were doing a clean install on any hard drive.
13dual
Create Boot Loader
Once installation of XP is successful you can now go through and install the latest Microsoft Updates and drivers. You will undoubtedly notice that the machine is booting directly into XP at this time. This is due to XP writing it’s bootloader over Windows 7’s. To get both XP and Windows 7 as an option at the boot screen you can use the free utility EasyBCD 1.72 or their new 2.0 Beta.
sshot-2010-01-04-[23-04-48]
VistaBootPRO 3.3 (free version) will still work too which you can download here. VistaBootPRO is now called DualBootPRO and is no longer free, it’s $9.95 for a single user license.
16dueal
After getting the bootloader back you should see both XP and Windows 7 as options in the Windows Boot Manager.
21dual
done !.
